Circular Chart Recorder
– CR11″ 3P-4P

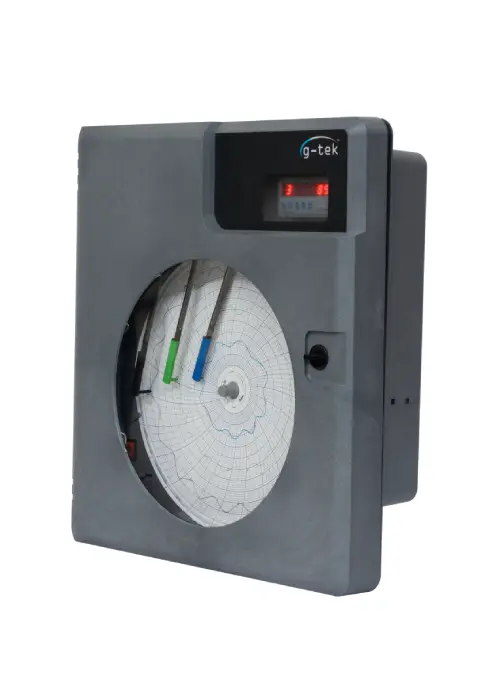

CR2010 series of circular chart recorders are available in 3 different sizes of the charts i.e. 4”, 6” and 11”. The 11” chart recorder is very useful when you want to monitor your process unattended.
These recorders are widely used in process industry for monitoring of various processes like incubation, curing, pasteurization etc. It takes direct input from RTD Pt-100 / Thermocouples / process inputs like 4-20mA / 0-20mA / 0-1V. These recorders are microcontroller based. Crystal controlled chart drive ensures accurate chart speed. Stepper motors for both pens and chart drive, ensures no lag and no backlash.

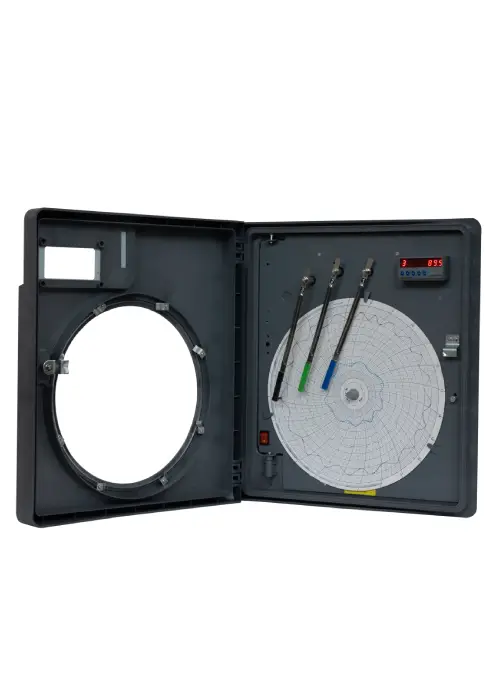

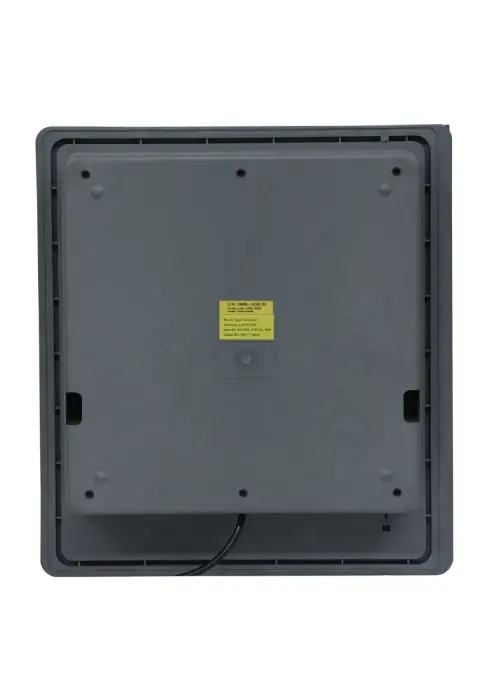

A cutout of 319×323 mm makes it a perfect fit for replacing any of your existing recorders of any make. Transparent polycarbonate door window makes the chart visible from the distance. They come with universal power supply as a standard feature. Other power supply inputs are also available.
Features
- 11” Chart Width
- Up to 4 Individual Process Parameter Recording
- Digital, 8 digit ultra-bright LED Numeric / semi alphabetic Display
- Single & Dual Analog Input channel
- Direct Input standard PT-100 / Thermocouple type J,K,R,S,T sensor
- Process Input through 4-20mA or 0-20mA and 0-1Volt
- Universal Power Supply 85-264 V AC, 47-63 Hz
- Other power supply inputs on request
- Battery Back up
- 1 hour/rev to 255 hours/rev chart speed
- Other Chart Rotation available on request
Specification
- 11” Chart Width
- Up to 4 Individual Process Parameter Recording
- Digital, 8 digit ultra-bright LED Numeric / semi alphabetic Display
- Single & Dual Analog Input channel
- Direct Input standard PT-100 / Thermocouple type J,K,R,S,T sensor
- Process Input through 4-20mA or 0-20mA and 0-1Volt
- Universal Power Supply 85-264 V AC, 47-63 Hz
- Other power supply inputs on request
- Battery Back up
- 1 hour/rev to 255 hours/rev chart speed
- Other Chart Rotation available on request
| Product Code* | 3xxxx |
| Recording System | |
| Pens | |
| No. of Pens | 3/4 |
| Pen Marking | Continuous |
| Pen Response Time | <5Sec (Full Scale) |
| Pen Resolution | Stepper Motor Controlled better than 0.1% FSD |
| Overshoot | None |
| Chart | |
| Chart Speed | 1 hour/rev to 255 hours/rev |
| Chart Calibrated Radius | 4.1”” (approx. 107mm) |
| Chart Ranges | Standard (Refer Table 2) / Customized Please specify |
| Display and Operator Panels and Input | |
| Display Type | Digital, 8 digits ultra-bright LED Numeric/semi alphabetic |
| Display Height | 0.3” |
| Status Indicator | Channel Number and corresponding parameter values, prompts and messages displayed for ease for setup and programming. |
| Panel Keys | Front panel KB consisting of 3 keys for programming and calibration |
| Analog Input | RTD PT-100 / 0-1 V / 4-20 mA / 0-20 mA (External shunt resistance of 50 Ohm 0.1%)/TCJ-K-R-S-T/0-1V |
| Sensor Type and Range | Refer to Table 1 |
| Scan Rate | Continuous 1 reading per second |
| Protection | |
| Input Impedance | RTD/Volt/ Tc > 20 MΩ |
| mA 50/3.3Ω Shunt External | |
| CMRR | >100 dB@ 50, 60 Hz at 3 Sample per Second |
| NMRR | >50 dB@ 50, 60 Hz at 3 Samples per Second |
| Maximum Common Mode Voltage | 5V AC |
| Isolation Channel – EARTH | 1.5KV 1 minute |
| Input Protection | 30V AC/DC max |
| Termination | Non Interchangeable, Removable Plugs, Individual for Each Input |
| Transmitter Power Supply | Non Isolated 15VDC /24VDC; 30Ma max, un protected |
| Environmental | |
| Temperature | (Operation)5°C to 45°C |
| (Limiting) 0°C to 50°C | |
| (Storage)-20°C to 60°C | |
| Humidity | (Operation) 10 to 80 % RH Non Condensing |
| (Storage)5 to 90 % RH Non Condensing | |
| Altitude | <2000 meter |
| Power Requirement | |
| Supply Voltage (Mains Operated) | 85-264VAC 47-63Hz |
| Battery backup | Yes |
| DC Adapter Operated | Yes |
| Power | 10W Max With Maximum Configuration |
| Fuse Type | None |
| Battery Backup | |
| Battery | 12V 7Ah External Lead Acid battery |
| Battery Reverse Polarity | Protected |
| Minimum Back up | >12 Hrs. |
| Communication RS232/485*: | |
| Protocol | Proprietary |
| Baud Rate | 4800 |
| Parity | None |
| Relay Output | |
| Max | 4 |
| Output Type | Potential Free Contact, 1 From C |
| Configuration | High/Low/High-Low/On-Off(Hysteresis band settable) |
| Life expectancy | Mechanical:10^7 Operations |
| Electrical :10^5 Operations | |
| Load | 1A ,230V AC resistive |
| Relay Refresh Rate | 1 Sec. |
| Isolation Relay-Relay | 2.5KV 1Minute |
| Isolation Relay Contact – GND | 1.5KV 1Minute |
| Safety | |
| EMI-EMC | IEC 61326-1 Class A |
| Safety | IEC 61010-1 |
| Pollution Degree | II |
| Installation Category | IV |
| Vibration | 2g Peak (10 Hz-150Hz) |
| Shock | IEC61010-1 |
| IP Rating | IP50 (Door and Bezel only) |
| Overall Dimension | |
| Dimension L x W x D (mm) | 411x376x130 |
| Panel Cutout (mm) (L x W) | 319×323 |
| Bezel (mm) | 411×376 |
| Input Type | Valid Input | Resolution | Accuracy | Display Range |
| PT-100(RTD) | -100 to +600˚C | 0.1 | ±0.5%FSD±1 Digit | -2000.0 to 2000.0 |
| mA | 4-20mA/0-20mA | 0.1 | ±0.5%FSD±1 Digit | -2000.0 to 2000.0 |
| mV | -1000.0 to +1000.0 | 0.1 | ±0.5%FSD±1 Digit | -2000.0 to 2000.0 |
| TC-J(Fe-CuCn) | 0 to 400°C | 0.1 | ±0.5%FSD±1 Digit | -2000.0 to 2000.0 |
| TC-K (NiCr-NiAl) | 0 to 1200°C | 0.1 | ±0.5%FSD±1 Digit | -2000.0 to 2000.0 |
| TC-R(Pt13Rh-Pt) | 0 to 1750°C | 0.1 | ±0.5%FSD±1 Digit | -2000.0 to 2000.0 |
| TC-S(Pt10Rh-Pt) | 0 to 1750°C | 0.1 | ±0.5%FSD±1 Digit | -2000.0 to 2000.0 |
| TC-T(CU-CuCn) | -100 to +400°C | 0.1 | ±0.5%FSD±1 Digit | -2000.0 to 2000.0 |
| Sr. No. | Range** | Speed | Size | Part No. | Part Description |
| 51 | 0 to +100 | 24H | 11″ | 301001 | D110100 |
| 52 | 0 to +150 | 24H | 11″ | 301008 | D110150 |
| 53 | 0 to +200 | 24H | 11″ | 301013 | D110200 |
| 54 | 0 to +300 | 24H | 11″ | 301017 | D110300 |
| 55 | 0 to 1200 | 24H | 11″ | 301007 | D1101200 |
| 56 | -50 to +50 | 24H | 11″ | 301033 | D11-5050 |
| 57 | 0 to +150 & -1 to +5 | 24H | 11″ | 301011 | D110150/-1+5 Dual Range |
| 58 | 0 to +250 & 0 to +100 | 24H | 11″ | 301015 | D110250/ 0100 Dual Range |
| 59 | 0 to +100 & 0 to +400 | 24H | 11″ | 301004 | D110100/0400 Dual Range |
| 60 | 0 to +100 & -40 to +60 | 24H | 11″ | 301005 | D110100/-4060 Dual Range |
| 61 | 0 to +80 & 0 to +160 | 24H | 11″ | 301022 | D11080/0160 Dual Range |
| 62 | 0 to +100 | 7 Day | 11″ | 302001 | W110100 |
| 63 | -100 to +50 | 7 Day | 11″ | 302011 | W11-10050 |
| 64 | -50 to +50 | 7 Day | 11″ | 302012 | W11-5050 |
| 68 | +40 to -10 | 7 Day | 11″ | 302013 | W11-4010 |
| 80 | Other please specify |
** First value in the chart is at the center of the Chart.
Specification listed are for each of the modules that can be fitted. Refer to the order code for the exact modules fitted in your system. Specifications for the modules that are not fitted, will not be applicable.Specifications are subject to change without notice
1.Chart Type:
| Sr. No. | Circular Chart |
Part Number | Part Description | ||
| Range** | Speed | Size | |||
| 51 | 0 to 100 | 24hrs/rev | 11″ | 301001 | D110100 |
| 52 | 0 to 150 | 24hrs/rev | 11” | 301008 | D110150 |
| 53 | 0 to 200 | 24hrs/rev | 11” | 301013 | D110200 |
| 54 | 0 to 300 | 24hrs/rev | 11″ | 301017 | D110300 |
| 55 | 0 to 1200 | 24hrs/rev | 11″ | 301007 | D1101200 |
| 56 | -50 to +50 | 24hrs/rev | 11″ | 301033 | D11-50+50 |
| 57 | 0 to +150 & -1 to +5 | 24hrs/rev | 11″ | 301011 | D110150/-1+5 Dual Range |
| 58 | 0 to +250 & 0 to +100 | 24hrs/rev | 11″ | 301015 | D110250/0100 Dual Range |
| 59 | 0 to +100 & 0 to 400 | 24hrs/rev | 11″ | 301004 | D110100/0400 Dual Range |
| 60 | 0 to +100 & -40 to 60 | 24hrs/rev | 11″ | 301005 | D110100/-40+60 Dual Range |
| 61 | 0 to +80 & 0 to 160 | 24hrs/rev | 11″ | 301022 | D11080/0160 Dual Range |
| 62 | 0 to +100 | 7days/rev | 11″ | 302001 | W110100 |
| 63 | -100 to +50 | 7days/rev | 11″ | 302011 | W11-100+50 |
| 64 | -50 to +50 | 7days/rev | 11″ | 302012 | W11-50+50 |
| 68 | +40 TO -10 | 7days/rev | 11″ | 302013 | W1140-10 |
| 80 | Other please specify | ||||
** First value in the chart is at the center of the Chart.
2. Panel Mounting Clamps (2 Nos):
Part No.- 210034
3. Pen: 5 Nos.
Pen 1 – Blue; Part No. – 217001
Pen 2 – Green; Part No. – 217002
Pen 3 – Black; Part No. – 217003
Pen 4 – Red; Part No. – 217004
4. Wall Mounting Kit
Part No.: – 210028
Accessories
1.Chart Type:
| Sr. No. | Circular Chart |
Part Number | Part Description | ||
| Range** | Speed | Size | |||
| 51 | 0 to 100 | 24hrs/rev | 11″ | 301001 | D110100 |
| 52 | 0 to 150 | 24hrs/rev | 11” | 301008 | D110150 |
| 53 | 0 to 200 | 24hrs/rev | 11” | 301013 | D110200 |
| 54 | 0 to 300 | 24hrs/rev | 11″ | 301017 | D110300 |
| 55 | 0 to 1200 | 24hrs/rev | 11″ | 301007 | D1101200 |
| 56 | -50 to +50 | 24hrs/rev | 11″ | 301033 | D11-50+50 |
| 57 | 0 to +150 & -1 to +5 | 24hrs/rev | 11″ | 301011 | D110150/-1+5 Dual Range |
| 58 | 0 to +250 & 0 to +100 | 24hrs/rev | 11″ | 301015 | D110250/0100 Dual Range |
| 59 | 0 to +100 & 0 to 400 | 24hrs/rev | 11″ | 301004 | D110100/0400 Dual Range |
| 60 | 0 to +100 & -40 to 60 | 24hrs/rev | 11″ | 301005 | D110100/-40+60 Dual Range |
| 61 | 0 to +80 & 0 to 160 | 24hrs/rev | 11″ | 301022 | D11080/0160 Dual Range |
| 62 | 0 to +100 | 7days/rev | 11″ | 302001 | W110100 |
| 63 | -100 to +50 | 7days/rev | 11″ | 302011 | W11-100+50 |
| 64 | -50 to +50 | 7days/rev | 11″ | 302012 | W11-50+50 |
| 68 | +40 TO -10 | 7days/rev | 11″ | 302013 | W1140-10 |
| 80 | Other please specify | ||||
** First value in the chart is at the center of the Chart.
2. Panel Mounting Clamps (2 Nos):
Part No.- 210034
3. Pen: 5 Nos.
Pen 1 – Blue; Part No. – 217001
Pen 2 – Green; Part No. – 217002
Pen 3 – Black; Part No. – 217003
Pen 4 – Red; Part No. – 217004
4. Wall Mounting Kit
Part No.: – 210028
