Mechanical Calibration

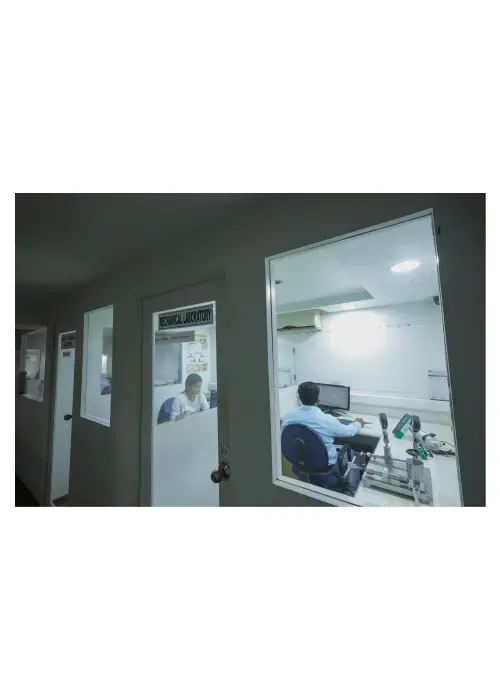

We are a NABL accredited calibration laboratory as per international standard ISO/IEC 17025: 2017. Our lab is proficient in executing calibration services for pressure-indicating devices.
Pressure measuring instruments are broadly used in several industrial domains namely process control, monitoring, and testing. The process of calibration serves the purpose of detecting and addressing any inaccuracies in pressure-measuring instruments. While calibrating pressure measuring instruments, several factors must be considered such as measuring range, resolution, repeatability of the instrument, environmental conditions & calibration procedures.
We deliver calibration services for analog/digital pressure gauges, pressure transmitters & pressure switches.
Features
Key Features:
Calibrate up to
- Pressure: 0 to 1000 bar
- Low pressure: -400 to 400 mbar
Specification
| S.No | Discipline / Group | Measurand or Reference Material / Type of instrument or material to be calibrated or measured / Quantity Measured / Instrument | Calibration or Measurement Method or Procedure | Measurement Range and Additional Parameters where Applicable (Range and Frequency) | Calibration and Measurement Capability (CMC) (±) |
|---|---|---|---|---|---|

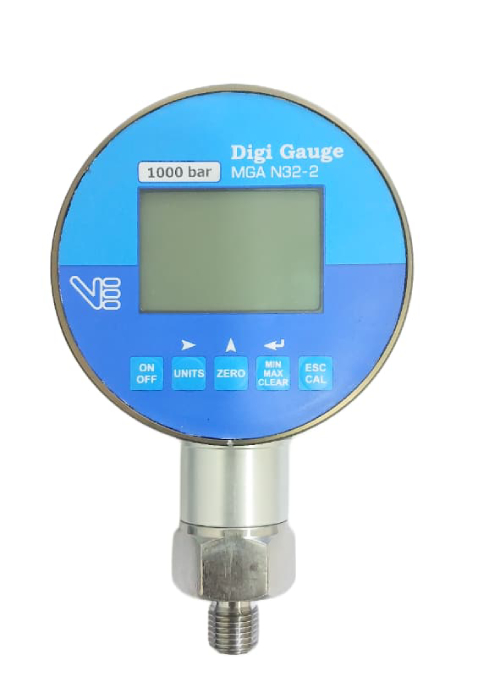

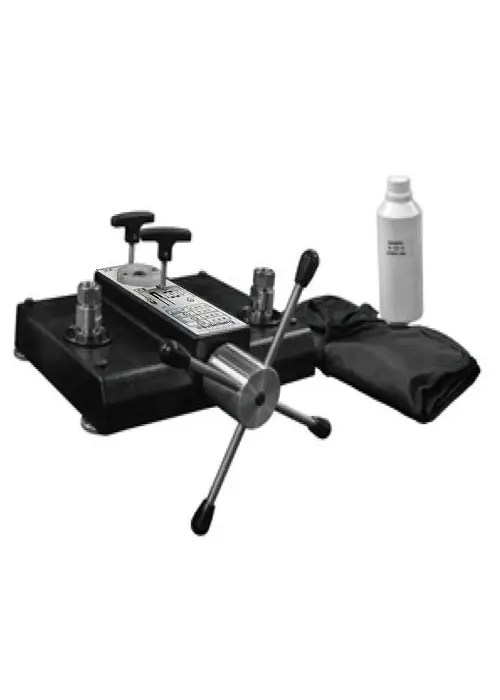

| 1 | MECHANICAL – PRESSURE INDICATING DEVICES | Hydraulic Pressure: Analog / Digital Pressure Gauge, Pressure Transmitter, Pressure Switch, Pressure Transmitter with Recorder / Indicator | Using Digital Pressure Gauge, Multifunction Process Calibrator and Hydraulic Comparator by Comparison Method as per DKD-R 6-1 | 0 to 1000 bar | 0.59 bar |
| 2 | MECHANICAL – PRESSURE INDICATING DEVICES | Hydraulic Pressure: Analog / Digital Pressure Gauge, Pressure Transmitter, Pressure Switch, Pressure Transmitter with Recorder / Indicator | Using Digital Pressure Gauge, Multifunction Process Calibrator and Hydraulic Comparator by Comparison Method as per DKD-R 6-1 | 10 bar to 100 bar | 0.14 bar |

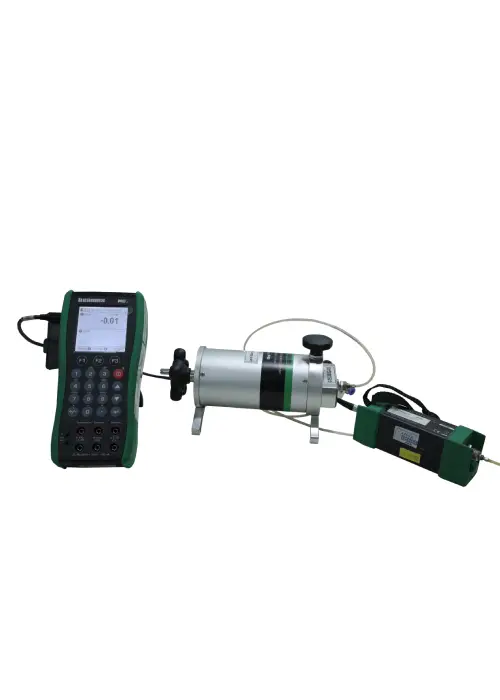

| 3 | MECHANICAL – PRESSURE INDICATING DEVICES | Pneumatic Pressure: Analog / Digital Pressure Gauge, Pressure Transmitter, Pressure Switch, Pressure Transmitter with Recorder / Indicator | Using Digital Pressure Calibrator with Vacuum / Pneumatic Hand Pressure Pump, Multifunction Process Calibrator by Comparison Method as per DKD-R 6-1 | (-) 400 mbar to 400 mbar | 0.78 mbar |
