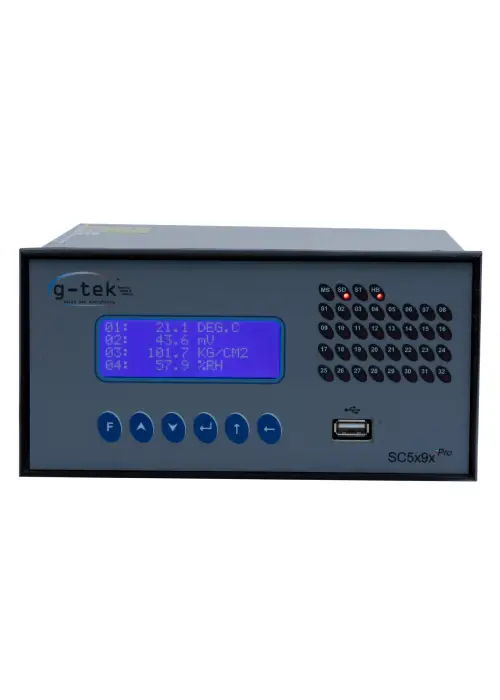

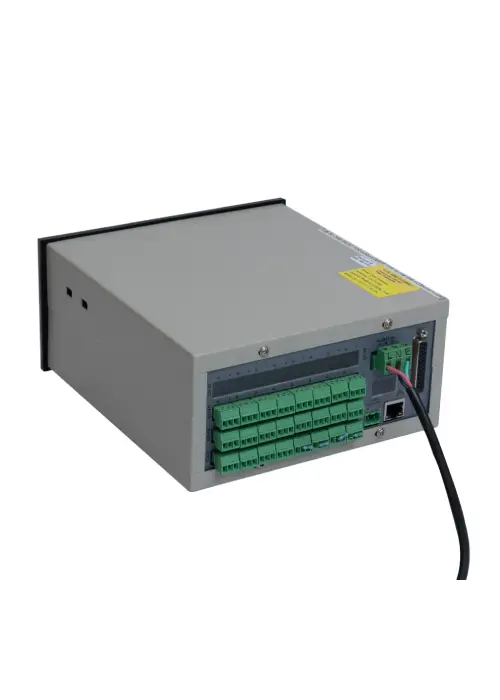

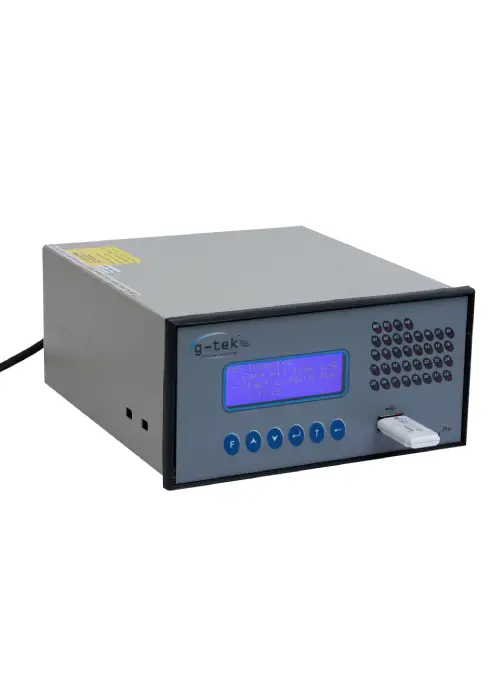

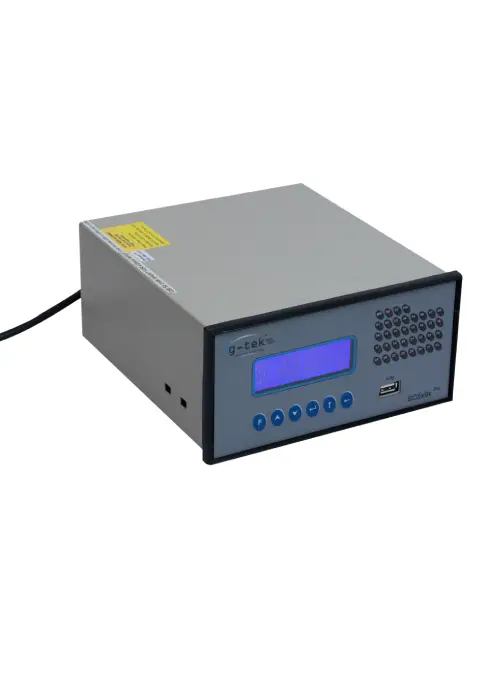

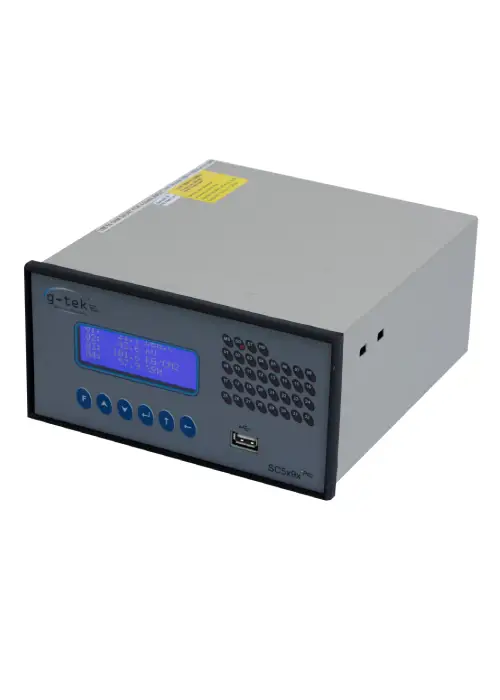

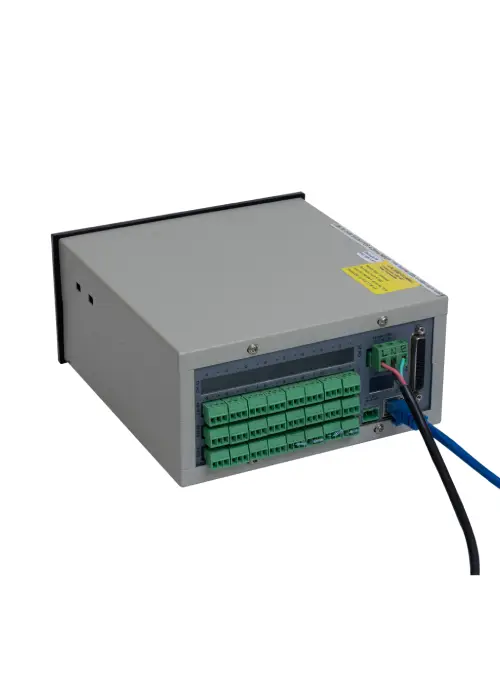

Series SC9x PRO Scanner
The PRO series of SC9x multichannel data logger is a high-speed data logger. They incorporate the state of the art Sigma Delta ADCs with 24bits of resolution for high accuracy and speed. 4×20 characters backlit LCD display with white over blue characters make it visible from the distance. These data loggers measure up to 96 channels of any process parameters or standard RTD and Thermocouple inputs. Scannig all the channels, be it 8 or 96, in less than 3 seconds, makes it very useful for validation of any process. With internal memory for storing data, it helps store validation parameters and retrieve them later for generating reports.
These data loggers along with gtekNetTM series of Software makes a complete solution for 21CFR Part II compliance. Various industry specific validation reports are built-in to the software. This makes it very easy for the user to meet the qualification / validation requirements of the certifying agencies and meeting various quality standards. User defined Password protected menus does not allow any unauthorized changes either from PC or from key-board. Every change is reported either online or in offline mode. TCP/IP, Ethernet port is a standard. USB host is available as an option to connect external mass storage device to store or transfer the data. It also supports MODBUS TCPIP protocol. it can easily form a part of the large networked data logger.
Features
Key Features:
- Universal Input
- Number of Channels: 8, 16, 24, 32 or 96
- Scanning Speed: All Channel in 3 Seconds
- User settable Resolution up to 0.0001
- 21CFR Part 11 compliance
- Built-in SD Card Storage – 16GB. Expandable to 32GB
- USB Host Interface
- Automatically download data in Flash Drive
- Ethernet connectivity
- Device Configuration from remote Application
- MODBUS TCPIP Compliant
- Dot Matrix printer interface
- The online printing and storing is possible from 1 seconds up to 18 hours.
- Individual High low alarm setting
- Maximum 8 Relay Output
- Transmitter Power Supply
*Features depends on the product ordered. Please refer to the order code (Model No) of your product for exact features and capabilities.
Specification
| Model No | SC9x Pro Universal Scanner / Data logger |
| Display and Operator Panels | |
| Display Type | 4×20 Characters backlit LCD display white over blue |
| Status Indicator | Various LED indication for Data Storage, Device heath, SD Card mount status, USB pen drive mount status and Alarm status Indication for each channel |
| Panel Keys | Front panel KB consisting of 6 keys for programming and configuration setting |
| Real Time Clock (RTC) | Scrolling of RTC along with other data; user can also fix one line to continuously Display RTC. |
| Event Notifications | Different events are notified on display |
| Display Blinking | on Alarm high – low Condition |
| Error Code | Various faults are indicated using Error Code on Display |
| Display Action | Display Rolling and Freeze (Does not Display skipped channel) |
| Log memory | % Log memory available on display |
| Sensor Connectivity | Sensor Failure Indication on Display (Open or Short) |
| Analog Input Details | |
| No Of Inputs | 8/16/24/32/64/96 Channels Max. |
| Sensor Input Type; Range and Accuracy | Refer to Table 1 |
| Linearization | Polynomial Based Software Linearization |
| Resolution | User settable up to 0.0001 |
| CJC Error | ±0.25˚C for 0-50˚C |
| Data Scan Rate | Maximum 3 Seconds for all Channels |
| Protection | |
| Input Impedance RTD/TC /Volt | > 20 MΩ |
| Input Impedance mA | 50Ω Shunt External |
| CMRR | >120 dB@ 50, 60 Hz at 10 Sample per Second |
| NMRR | >60 dB@ 50, 60 Hz at 10 Samples per Second |
| Maximum Common Mode Voltage | 5V AC |
| Isolation Channel – EARTH | 2.5KV, 1 Minute |
| Input Protection | 30V AC/DC Max |
| Batch Storage / Data Memory Details | |
| Start / Stop | Key Press / Remote Start – Stop |
| Store Interval | 1 Seconds to 18 Hrs |
| Memory Size | 16GB Standard / Expandable to 32GB / Stop on Full |
| General | |
| Termination | Non Interchangeable, Removable Plugs, Individual For Each Input |
| Max No Of Input Cards Per Device | 4 (8 channels each) |
| Password Protection | Optional |
| Device RTC set | Set Device RTC from application (So that PC and Device RTC are in sync while starting the batch) |
| Environmental | |
| Temperature | (Operation)5˚C to 45˚C |
| (Limiting) 0˚C to 50˚C | |
| (Storage)-20˚C to 60˚C | |
| Humidity | (Operation) 10 to 80 % RH Non Condensing |
| (Storage) 5 to 90 % RH Non Condensing | |
| Altitude | <2000 meter |
| Power Requirement | |
| Supply Voltage | 85-264VAC 47-63Hz |
| Power | 15W Max with Maximum Configuration |
| Transmitter Power Supply | |
| No of outputs available | 1 |
| Voltage | 12-15V DC |
| Max Load current | 30mA |
| Short circuit protection | Yes |
| Isolation | NA |
| Communication | |
| PC Interface | Ethernet TCP/IP |
| Ethernet | 10 /100 Base T (IEEE 802.3) |
| Connector | RJ45 |
| Protocols Supported | MODBUS TCP/IP; HTTP; FTP |
| Communication Activity LED | Yes |
| Isolation (Terminal – GND) | 1KV, 1minute |
| Printer Interface | Centronics Port |
| USB Host | Automatically download data in Flash Drive |
| Relay Output Details | |
| Max. no. of Relay | 8 |
| Max. no. of relay group | 8 (any channel/set-point can be assigned to any group) |
| Output Type | 1 Form C |
| Alarm Set-point | High/Low individually settable for each channel |
| Life Expectancy | Mechanical: 10^7 operations
Electrical: 10^5 operations |
| Relay Contact | 1A 230VAC resistive |
| Relay Refresh Rate | 5 Sec |
| Isolation Relay-Relay | 2.5KV 1 Minute |
| Isolation Relay contact – GND | 1.5KV 1 Minute |
| Safety | |
| Safety/EMI-EMC | IEC 61010-1/ EN 61326 Class B |
| Pollution Degree | II |
| Installation Category | IV |
| Vibration | 2g Peak (10Hz-150Hz) |
| Shock | IEC 61010-1 |
| IP Rating | IP20 |
| Overall Dimension* | |
| Dimension L x W x D (mm) | 210 x 192 x 96 |
* (up to 32 Channels)
Table1: Accuracy and Range Table for various sensor inputs
| Sensor Accuracy at 25 ˚C | ||||||
| Sensor Type | Standard | Range | Error | Error% Input | Error% Range | Error Temperature Coefficient ppm/°C |
| RTD Type | ||||||
| Pt 100 | IEC751 | -200 To +750 | ±0.01˚C | ±0.04% | ±0.04% | 30ppm |
| T/C Type | ||||||
| B | IEC584.1 | +200 To +1800 | ±0.03˚C | ±0.05% | ±0.06% | 25ppm |
| C | Hoskins | 0 To +2300 | ±0.12 ˚C | ±0.05% | ±0.06% | 25ppm |
| E | IEC584.1 | -100 To +1000 | ±0.03˚C | ±0.05% | ±0.06% | 25ppm |
| J | IEC584.1 | -200 TO +1200 | ±0.02˚C | ±0.05% | ±0.06% | 25ppm |
| K | IEC584.1 | -200 To +1372 | ±0.04˚C | ±0.05% | ±0.06% | 25ppm |
| N | IEC584.1 | -200 To +1300 | ±0.04˚C | ±0.05% | ±0.06% | 25ppm |
| R | IEC584.1 | 0 To +1750 | ±0.04˚C | ±0.05% | ±0.06% | 25ppm |
| S | IEC584.1 | 100 To +1750 | ±0.04˚C | ±0.05% | ±0.06% | 25ppm |
| T | IEC584.1 | -100 To +400 | ±0.02˚C | ±0.05% | ±0.06% | 25ppm |
| mV | ||||||
| 0 – 1 Volt | – | ±9999 | – | ±0.03% | ±0.03% | 25ppm |
| ±1 Volt | – | ±9999 | – | ±0.03% | ±0.03% | 25ppm |
| 0 – 5 Volt | – | ±9999 | – | ±0.03% | ±0.03% | 25ppm |
| ±5 Volt | – | ±9999 | – | ±0.03% | ±0.03% | 25ppm |
| mA – DC (External Shunt 50 Ω 0.1%) | ||||||
| 4-20mA | – | ±9999 | ±0.1% | ±0.03% | ±0.03% | 25ppm |
| 0-20mA | – | ±9999 | ±0.1% | ±0.03% | ±0.03% | 25ppm |
Accessories

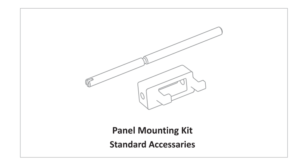

1. Panel Mounting Clamps: 2 numbers; Part No. 210034
2. Ethernet Cable: Part No.: 236249
